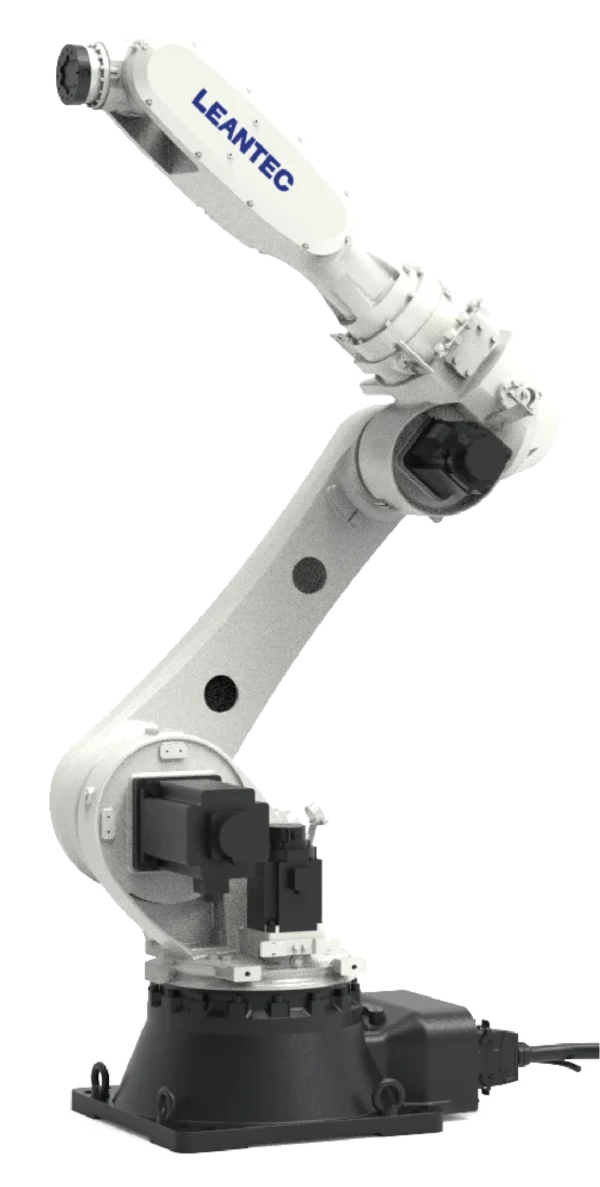

LA2200-80-R
- Wider range of motion, high-speed and high-precision with ±0.05mm position repeatability
- Equipped with 16/16 I/O and is easily expandable for more complex applications
- Standard IP65 (Wrist IP67) proved long term operation in harsh environment
Specifications | ||
No. of Control Axes | 6 | |
Max Load Capacity (kg) | 80 | |
Max. Reach (mm) | 2200 | |
Pos. Repeatability (mm) | ±0.06 | |
Motion Range (°) | J1 Axis | ±185 |
J2 Axis | +155/-90 | |
J3 Axis | +80/-210 | |
J4 Axis | ±200 | |
J5 Axis | ±130 | |
J6 Axis | ±360 | |
Max. Speed (°/s) | J1 Axis | 170 |
J2 Axis | 145 | |
J3 Axis | 170 | |
J4 Axis | 285 | |
J5 Axis | 285 | |
J6 Axis | 285 | |
Motor Output (kw) | J1 Axis | 3.1 |
J2 Axis | 5.8 | |
J3 Axis | 3.1 | |
J4 Axis | 2.0 | |
J5 Axis | 2.0 | |
J6 Axis | 0.75 | |
Weight (kg) | ~645 | |
Installation | Floor | |
Levels of Protection | IP67 (Wrist: IP67) | |
Ambient Temperature / Humidity / Vibration | Ambient Temperature: 0~45°C | |
